1. Working Principle of the HPCS50/65/80-AM Energy Storage Converter

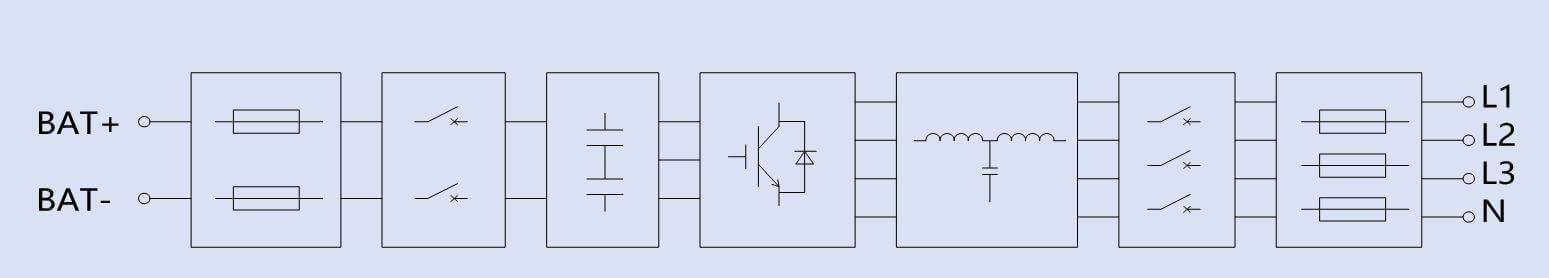

Working Principle of Bi-Directional AC/DC Converter for Energy Storage %% 2. Technical Specifications of HPCS50/63/80-AM %% Model Specifications %% HPCS50-AM %% HPCS65-AM
HPCS80-AM
| Model Specifications | HPCS50-AM | HPCS65-AM | HPCS80-AM |
| DC side |
| Operating voltage range | 615V～950V/ 650V～950V |
| Maximum current | 90A | 112A | 130A |
| AC side |
| rated voltage | 400V |
| Rated voltage range | ±15% |
| Rated frequency | 50/60Hz |
| Wiring method | Three-phase three-wire/three-phase four-wire |
| rated power | 50kW | 65kW | 80kW |
| Maximum Power | 55kW | 69.3kW | 88kW |
| Maximum Current | 80A | 100A | 127A |
| Power Factor | ≥0.99 /-1～1 |
| Current distortion rate | <3% (rated power) |
| DC component | ＜0.5% |
| Overload capacity | 110% continuous |
| Maximum efficiency | 98.5% |
| General parameters |
| Dimensions (W × H × D) | 500 × 232 × 635mm |
| Weight | 38kg |
| Altitude | 4000m (Derating required above 2000m) |
| Operating Temperature | -30℃ to 55℃ (derating required when above 45℃) |
| Humidity | 5%RH～95%RH, non-condensing |
| Cooling Method | Intelligent Air Cooling |
| Protection Level | IP20 |
| Communication Method | CAN/RS485 |
3. Product Features
Three-level topology, high conversion efficiency
High dynamic response, millisecond-level full load charge/discharge switching
String design, wide DC voltage range, supports multiple battery types
Seamless grid-tie/off-grid switching, paired with STS to provide uninterrupted backup power
VSG/PQ/VF multiple operation modes
Off-grid parallel operation, black start capability
LVRT, HVRT, and 100% single-phase unbalanced load capability
Exceptional grid adaptability (stable operation under conditions of THDu ≤ 30%)
5. Typical Application Scenarios
Energy storage, lithium battery testing
AC/DC simulation power supply, electronic load
Energy storage inverter
Peak shaving and valley filling: Store electricity during off-peak hours when prices are low and discharge during peak demand periods to save on electricity costs.
Uninterrupted Power Supply: When the grid fails, the system can seamlessly switch to off-grid power supply, ensuring normal operation of the load.
Dynamic Capacity Expansion: Compensates for short-term power resource shortages and delays distribution investment.
Power Quality Management: Compensates for transient voltage drops in the grid, power factor of the load, and harmonic currents.
Can form a hybrid microgrid system.
6. Data Download
PCS50-80-AM Energy Storage Converter.pdf
