1. Working Principle of Energy Storage Converter

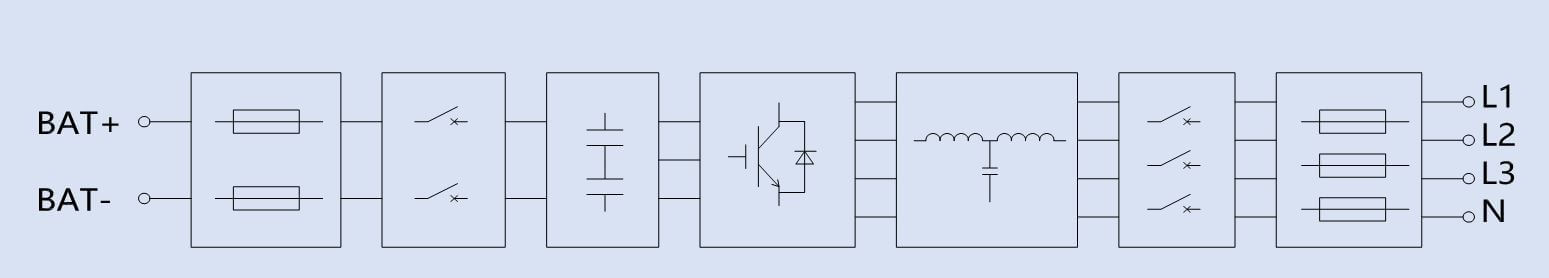

Working Principle of Bidirectional AC/DC Converter for Energy Storage
2. Technical Specifications of HPCS125-AM
| Model Specifications | HPCS125-AM |
| DC Side |
| Operating Voltage Range | 615V~950V/650V~950V |
| Maximum Current | 203A |
| AC Side |
| Rated voltage | 400V |
| Rated Voltage Range | ±15% |
| Rated frequency | 50/60Hz |
| Wiring Method | Three-phase Three-wire/Three-phase Four-wire |
| Maintenance Method | Front Wiring/Rear Wiring |
| Rated Power | 125kW |
| Maximum Power | 138kW |
| Maximum Current | 200A |
| Power factor | 0.99 /-1～1 |
| Current distortion rate | <2% (rated power) |
| DC component | ＜0.5% |
| Overload capacity | 110% continuous |
| Maximum efficiency | 99% |
| Standard parameters |
| Dimensions (Width × Height × Depth) | 520 × 232 × 785mm |
| 520 × 232 × 725mm (*) |
| Weight | 72kg |
| 69kg (*) |
| Altitude | 4000m (Derating required when exceeding 2000m) |
| Operating Temperature | -30℃ to 60℃ (Derating required above 45℃) |
| Humidity | 5%RH~95%RH, non-condensing |
| Cooling Method | Intelligent Air Cooling |
| Protection Level | IP20 |
| Communication Method | CAN/RS485/Ethernet |
| *Represents the dimensions/weight values for rear wiring connection method |
3. Product Features
Perfectly compatible with 280/314/320Ah battery cell systems
High power density, high conversion efficiency, zero battery loss
High-efficiency intelligent speed-adjustable fan control for better heat dissipation
Intelligent allocation with flexible multi-mode operation
Cluster-level management, adaptive to three-phase three-wire/four-wire (enabled)
Modular design for ultra-simple installation and maintenance
Supports EMS and BMS system linkage with active power management functionality
Real-time monitoring, real-time fault warning and fault location
4. Typical Application Scenarios
Energy storage, lithium battery testing
AC/DC analog power supplies, electronic loads
Energy storage inverters
Peak shaving and valley filling: Store electricity during low-price periods and discharge during peak demand to reduce electricity costs
Uninterrupted power supply: When the grid fails, the system can seamlessly switch to off-grid power supply, ensuring normal operation of the load.
Dynamic capacity expansion: Compensating for short-term power resource shortages and deferring distribution investment
Power quality management, compensating for transient voltage sags in the grid, power factor of loads, and harmonic currents
Can form a hybrid microgrid system
5. Data Download
HPCS125-AM Energy Storage Converter.pdf
